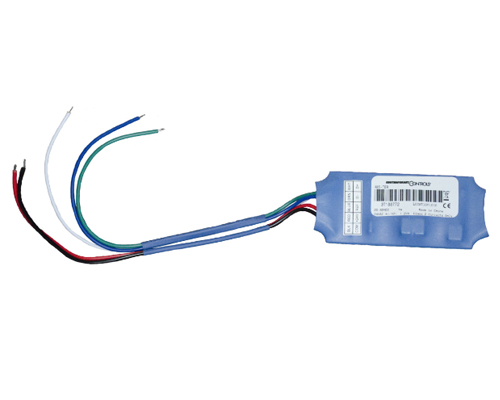

485-TER Standalone Active Terminator



Support Materials

Product Overview

The 485-TER is a standalone active terminator that is used on popular EIA-485 networks such as Modbus RTU and BACnet MS/TP that provide sufficient termination and biasing to the network to ensure reliable operation. Fail-safe bias ensures that an undriven line assumes a defined state. When a head-end device does not have internal bias and termination two 485-TER devices should be installed – one at each end of the network. This will provide stability and error free communication.

The 485-TER is a compact device that can be applied in the field quickly and easily. It comes with an isolated cover allowing it to be installed almost anywhere. The 485-TER can be installed to stabilize the physical layer of an EIA-485 network by providing the proper voltage bias (greater than 200mV) and termination (120 Ohms) to the network. The 485-TER requires 24VAC +/-10% 1VA or 20-30VDC 0.5W power. Power can be shared with the same power source used by the controller. The 485-TER continues to provide a termination resistance of 120 Ohms to the network even when power is not provided. The 485-TER can be used with either 2-wire non-isolated EIA-485 networks or 3-wire isolated EIA-485 networks.

Ordering Information

Model Description
BAS-485-TER Active EIA-485 terminator (package 5 pieces) $285
