BASstat Series BACnet Thermostats
Thermostats in the series are designed for BACnet/IP over Wi-Fi or MS/TP multi-stage rooftop units and analog 4-pipe fan coil units. The BACnet-compliant wired or wireless communicating thermostats ensure effortless integration into BACnet/IP (Wi-Fi) or BACnet MS/TP (EIA-485) networks. All units require 24 VAC/VDC powering from NEC Class 2 power sources. Output relays restricted to NEC Class 2 wiring. All models accommodate NTC 3k remote temperature sensor and voltage-free occupancy sensor. LCD display can be configured for °C or °F.
| Model/Description | Analog and Binary Inputs | Binary Outputs | Analog Outputs | Comm | ||||||||
| Space Temp | Remote Temp | Energy Savings | Humid Sensor | Stage 1 Heating | Stage 2 Heating | Stage 1 Cooling | Stage 2 Cooling | 1-Speed Fan | Analog Heating | Analog Cooling | ||
| BAST-221C-B2 BACnet MS/TP Thermostat 2-Heat, 2-Cool, 1-Fan, Wired |
X | X | X | X | X | X | X | X | MS/TP | |||
| BAST-221C-BW2 BACnet/IP Thermostat 2-Heat, 2-Cool, 1-Fan, Wi-Fi |
X | X | X | X | X | X | X | X | Wi-Fi | |||
| BAST-221CH-B2 BACnet MS/TP Thermostat 2-Heat, 2-Cool, 1-Fan, RH, Wired |
X | X | X | X | X | X | X | X | X | MS/TP | ||
| BAST-221CH-BW2 BACnet/IP Thermostat 2-Heat, 2-Cool, 1-Fan, RH, Wi-Fi |
X | X | X | X | X | X | X | X | X | Wi-Fi | ||
| BAST-421C-B2 BACnet MS/TP FCU 4-pipe, single-speed Fan, Wired |
X | X | X | X | 0-10V | 0-10V | MS/TP | |||||
| BAST-421C-BW2 BACnet/IP FCU 4-pipe, single-speed Fan, Wi-Fi |
X | X | X | X | 0-10V | 0-10V | Wi-Fi | |||||
| Reverse Valve | Aux Heat | Comp 1 | Comp 2 | |||||||||
| BAST-321HP-B2 BACnet MS/TP Heat Pump 2-comp, 1-Aux Heat, 1-Fan, Wired |
X | X | X | X | X | X | X | X | MS/TP | |||
| BAST-321HP-BW2 BACnet/IP Heat Pump 2-comp, 1-Aux Heat, 1-Fan, Wi-Fi |
X | X | X | X | X | X | X | X | Wi-Fi | |||
Fan coil units are intended for 4-pipe systems and modulating 0-10V actuators.
BAST-221 Thermostats
BAST-221 Thermostats are suited for single or multi-stage heating, cooling and ventilation binary output control applications such as RTU or AHU. Configurable control algorithm parameters allow adaptability to the specific application. Adaptive control algorithm applied to multi-stage on/off control saves energy and ensures seamless comfort for the occupants. Three sensing options are available: built in temperature sensor, input for a remote temperature sensor, or temperature override network command from Building Automation System. A built-in relative humidity sensor (in 221CH models) allows the thermostat to display relative humidity on the screen as well as serve it as a BACnet object, dew point calculation is also served as a BACnet object (no control action is taken based on humidity). Occupancy status can be set from thermostat buttons or over the BACnet network. Thermostat buttons are optionally lockable to prevent unauthorized control or configuration changes. Digital display with graphical icons is easy to read and understand.
BAST-321 Heat Pump Thermostats
BAST-321 Heat Pump Thermostats are suited for heating, cooling, and ventilation with binary output control for single and multi-stage heat pumps with or without 3rd stage auxiliary heat. An adaptive control algorithm applied to multi-stage on/off control saves energy and ensures comfort for the occupants. Three sensing options are available: built in temperature sensor, input for a remote temperature sensor, or temperature override network command from Building Automation System. Reversing valve (O/B) logic is configurable. Occupancy status can be set from thermostat buttons, a wired ESI input, or over the BACnet network. Thermostat buttons are optionally lockable to prevent unauthorized control or configuration changes. Digital display with graphical icons is easy to read and understand.
BAST-421 Modulating Thermostats

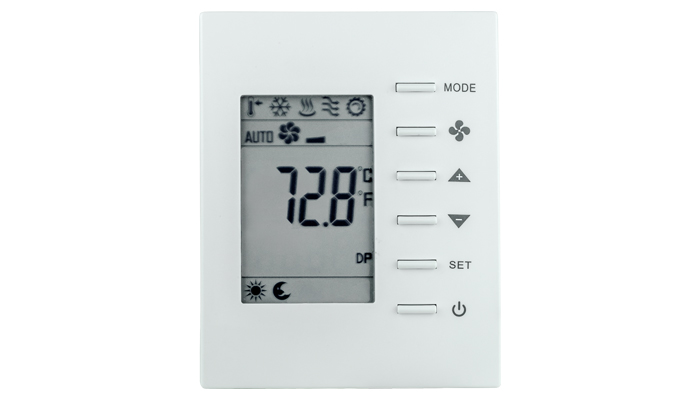

These thermostats are suited for modulated heating, cooling, and ventilation with analog output control in 4-pipe applications such as fan coil units (FCU) or air handlers. A configurable control algorithm allows adaptability to the specific application. This adaptive algorithm applied to the modulated valve control saves energy and ensures comfort for the occupants. Three sensing options are available: built-in temperature sensor, input for remote temperature sensor, or temperature override network command from Building Automation System. Occupancy status can be set from thermostat buttons, a wired ESI input, or over the BACnet network. Thermostat buttons are optionally lockable to prevent unauthorized control or configuration changes. Digital display with graphical icons is easy to read and understand.
