CTRLink EICP8M Series Managed Switch, Cost-Effective Solution

Product Overview

  • Industrial temperature,range (0° to +60°C)
  • IGMP Snooping & Query Functionality
  • RapidRing® Redundant Ring Technology (recovery in less than 300 ms)
  • Virtual LAN support (Port VLAN and 802.1Q)
  • Quality of Service (QoS) support (802.1p, DiffServ, TOS, Port-based, MAC-based)
  • Port Mirroring
  • Rate Limiting (broadcast storm control)
  • Configurable via a web browser or terminal emulation
  • Trunking for high-speed backbone and redundancy (less than 10 ms recovery)
  • Port Security
  • Programmable fault relay
  • Managed via the SNMP Protocol
  • Field upgradable firmware
  • Auto-crossover (Auto-MDIX) on twisted-pair ports
  • 10BASE-T / 100BASE-TX compliant
  • Choice of auto-negotiated or static data rate, duplex and flow control
  • Wide-range, low-voltage AC or DC powered
  • Provision for redundant power connections
  • LEDs for link/activity, data rate, power and status
  • Easy panel or DIN-rail installation
  • Industrial environment EMC compatible
  • CE Mark
  • UL 508 Listed
  • C-UL Listed, C22.2 CSA NO.14-M91, Industrial Control Equipment

Product Details

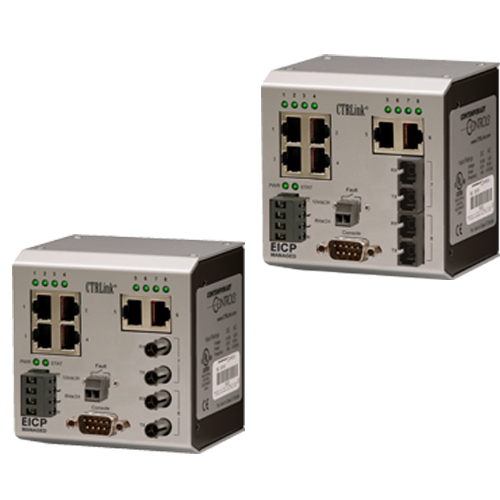

The EICP8M series of compact managed switching hubs provide management functionality in specific applications where 0° to +60°C temperatures are expected. Both copper and fiber models are available.

Designed with the conventional features usual in standard Plug and Play switches, the EICP8M series includes such important benefits as RapidRing®, VLAN, trunking, Quality of Service (QoS), SNMP (Simple Network Management Protocol) and a programmable fault relay that can be connected to a supervisory system. Individual port parameters and other feature settings are configurable.

The EICP8M series is designed with an interactive web server, accessible from any Internet compatible PC on the local network.

Configuration is done either from a web browser or through a console port connected to a Windows-based terminal emulation program such as HyperTerminal. Port parameters (data rate, duplex, and flow control) can be pre-set via the console port or auto-negotiated.

Each model in this series performs as an SNMP agent allowing access to information on the status of its various ports. The SNMP agent is comprised of a collection of managed objects that can be queried by a manager to indicate the status of the network or any particular device. When this data is displayed in an easily understood format, operators and maintenance personnel, at a central location, can check the entire network by observing selected devices and detect potential problems before they occur.

Either straight-through or crossover cables may be used to connect any of the Auto-MDIX ports to NICs or another hub. In addition to one power LED, each port has an LED showing link/activity/data rate by color: green for 100 Mbps and yellow for 10 Mbps. Flashing indicates port activity.

The EICP8M series is shipped with a DIN-rail clip for installation with a TS-35 DIN-rail. If direct mounting to a sub-panel is needed, an optional panel mounting bracket, shipped with the product, can be installed after removing the DIN-rail clip.

Seeking an unmanaged version of this switch?
Click here.

Ordering Information

Model Description
EICP8M-100T 8-Port 10/100Mbps Managed Compact Switch $695
EICP8M-100T/FC 6-Port 10/100Mbps 2-Port MM SC-fiber Managed Compact Switch $995
EICP8M-100T/FT 6-Port 10/100Mbps 2-Port MM ST-fiber Managed Compact Switch $995
EICP8M-100T/FCS 6-Port 10/100Mbps 2-Port SM SC-fiber Managed Compact Switch $1,095

Accessories

Model Description
AI-XFMR Wall-mount plug-in transformer 120 VAC (nom) input/24 VAC (nom) output (details...) $35
AI-XFMR-E Wall-mount plug-in transformer 230 VAC (nom) input/24 VAC (nom) output (details...) $55
