Skorpion Managed Switch Series for cost effective applications

Features

  • Choose all 10/100 Mbps copper ports or add two fiber ports
  • Single-mode fiber distances up to 15 km
  • RapidRing® fiber optic ring redundancy for up to 100 rings
  • Industrial temperature range: 0°C to +60°C
  • 10-36 VDC or 24 VAC powered
  • LEDs for link/activity, data rate, power and status
  • Web page configuration
  • UL and C-UL listed, CE Mark, RoHS compliant

Management Functionality

  • Managed via the SNMP protocol
  • IGMP snooping & query functionality
  • Cable redundancy using RSTP or RapidRing®
  • Virtual LAN support (Port VLAN and 802.1Q)
  • Quality of Service (QoS) support (802.1p, DiffServ, TOS, Port-based, MAC-based)
  • Port mirroring, rate limiting and port security
  • Authentication
  • Trunking
  • Programmable Fault Relay

Product Details

The EISK8M Series offers a compact rugged managed 10/100 Mbps Ethernet switch with a choice of eight copper ports or a mix of six copper and two fiber ports-with fiber optic ring redundancy. Intended for cost-effective SNMP managed applications, the unit is extremely compact and rated over the industrial temperature range. fiber optic distances up to 15 km are possible with the single-mode option. Besides having the standard plug-and-play features found in unmanaged switches, this unit supports the SNMP protocol and management features usually found only in high-end switches. Each unit can be configured via its web pages-and can be powered either from a low voltage AC or DC source.

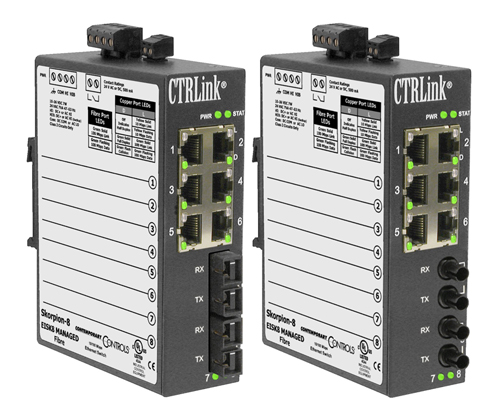

The EISK8M Series provides standard plug-and-play features such as auto-negotiation and Auto-MDIX-allowing for quick and simple installation. However, these features plus full-duplex can be individually set for each copper port. Three models offer two fiber ports. You can choose single-mode transceivers with SC connectors (providing 15 km cable distance) or multimode transceivers with either SC or ST connectors. The copper ports can auto-negotiate 10 Mbps, 100 Mbps, half- or full-duplex. With Auto-MDIX, either straight-through or crossover cables may be used to connect any of the copper ports to similar ports on another switch. In addition to one power LED and one CPU status LED, each port has LEDs showing link/activity/data rate by colour: green for 100 Mbps and yellow for 10 Mbps. Flashing indicates port activity. The EISK8M Series is designed for DIN-rail mounting. There are several low-voltage AC or DC powering options from 24 VAC or from 10-36 VDC. Provisions exist for redundant power connections.

Ordering Information

The EISKM Skorpion Managed Switch Series is no longer available. Please contact your regional office for replacement options.
