BACnet Edge Controllers with Cloud Connectivity

BACnet/IP and MS/TP compliant Edge Controllers provide easy-to-use and secure cloud connectivity via MQTT over TLS, making them ideal for standalone or BACnet supervised HVAC applications.

• BACnet Client/Server Communication
• Azure IoT Central Connector

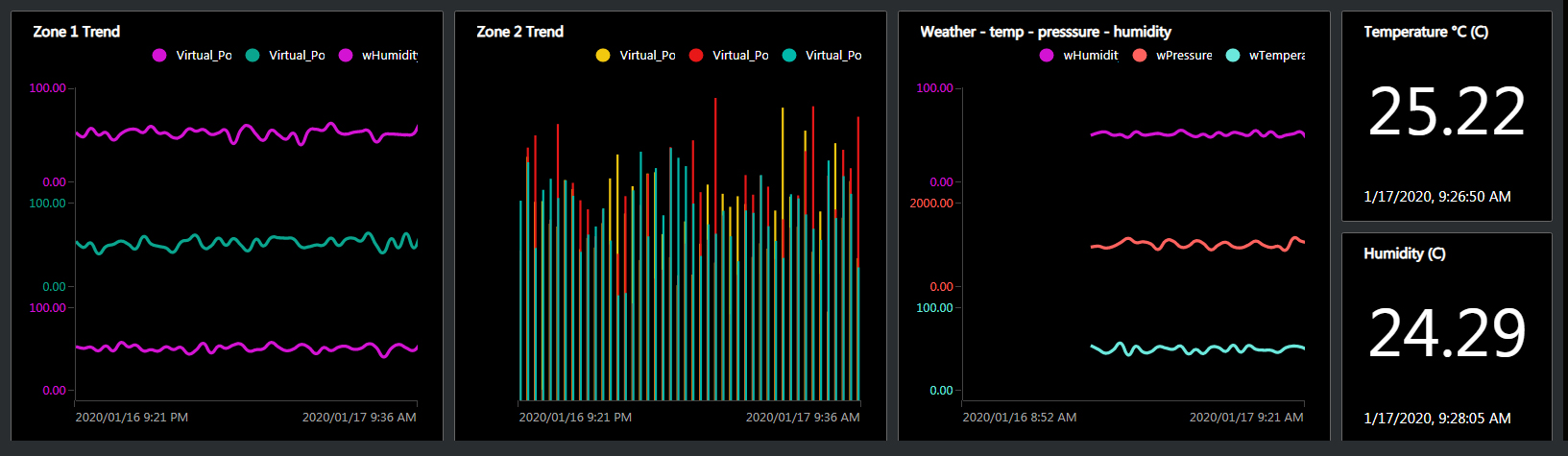

• Graphical Dashboard
• Free Programming Software and N4 Sedona Driver
• Email alarms and notifications
• Online Weather Service

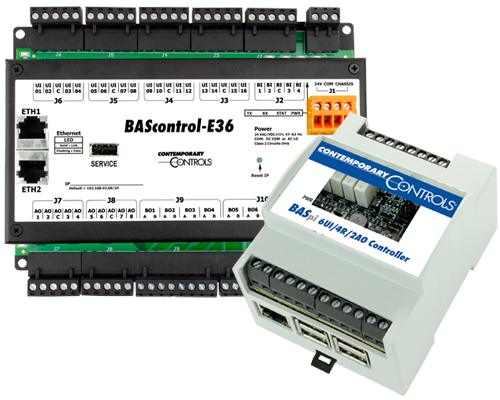

The BAScontrol-E36 is an Advanced Rooftop Controller which is intended for energy optimization utilizing advanced control sequences in rooftop units. The controller has the necessary computing power and input/output (I/O) point count to execute recommended advanced sequences published in ASHRAE Guideline 36-2018 High-Performance Sequences of Operation for HVAC Systems (GL-36).

The BASpi-Edge Series are hardened cloud connected BACnet controllers with enhanced features and data processing at the Edge functionality, powered by Raspberry Pi. Housed in a compact DIN rail mounted enclosure with 24 VAC/VDC power input and a resilient pSLC 8 GB micro SD card gives them performance and convenience advantages, making them suitable for a wide array of applications. BACnet client/server communication over Ethernet or Wi-Fi and Sedona function block programmable control logic and data processing at the Edge come standard. By leveraging open IoT protocols such as MQTT, proven security mechanisms such as Transport Layer Security (TLS), and robust and easy to use software as a service cloud solutions (SaaS) such as Azure IoT Central, BASpi-Edge controllers can easily and securely connect to the cloud, effectively making any attached equipment a cloud connected asset.
